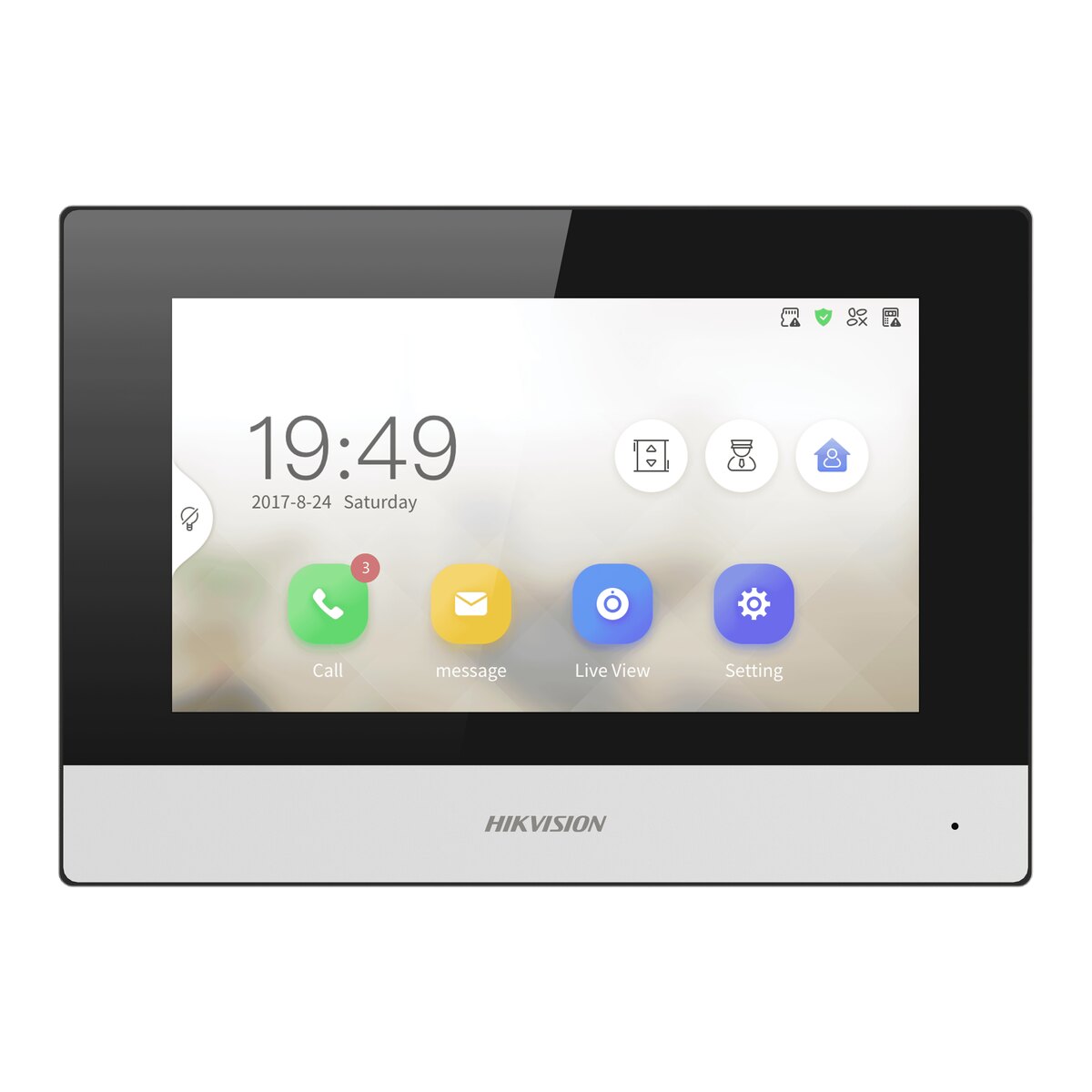

Hikvision 7″ 2-Wire IP Touchscreen Wi-Fi Indoor Station DS-KH6320Y-WTE2
If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products
- 7-inch touchscreen
- Wi-Fi
- Works with the Hik-Connect app
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Description
An indoor station for Hikvision's 2-wire IP intercom range. Answer calls from the door, see who is there and release the door or gate from the screen.
Key features
- 7-inch touchscreen
- Wi-Fi
- Works with the Hik-Connect app
Not sure which parts your system needs? Send us a message with the door and room layout and we will put the list together.
Specifications
| System parameters | |
|---|---|
| Operating system | Embedded Linux operation system |
| ROM | 32 MB |
| RAM | 128 MB |
| CPU | Embedded processor |
| Display parameters | |
| Screen size | 7-inch |
| Operation method | Capacitive touch screen |
| Type | Colorful TFT screen |
| Resolution | 1024 x 600 |
| Audio parameters | |
| Audio compression standard | G.711 U G.711 A |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Buit-in loudspeaker |
| Audio compression bitrate | 64 Kps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Event capacity | 200 captured pictures (with TF card); 200 alarm records 2 MB RAM (without TF card) reserved for events |
| Linked network camera capacity | 16 |
| Linked indoor extensions capacity | 5 |
| Notice capacity | 200 |
| Linked doorphone capacity | 17 IP doorphones Max. |
| Network parameters | |
| Communication protocol | TCP/IP, SIP, RTSP |
| Wired network | 10/100 Mbps self-adaptive through 2-wire interface |
| Wi-Fi standard | Wi-Fi 802.11 b/g/n |
| Device interfaces | |
| Alarm input | 8-ch alarm inputs |
| RS-485 | 1 |
| TF card | Max to 128 G, SD 2.0 or lower version |
| Alarm output | 2 relays (30 V Max.) |
| Two-wire IP interface | 1 |
| General | |
| Installation | Surface mounting |
| Weight | 327 g |
| Power supply method | Two-wire |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimensions | 200 mm x 140 mm x 23.6 mm (7.87" x 5.51" x 0.93") |
| Power supply | Powered by KAD704Y or KAD706Y series distributor |
| Application environment | Indoor |
| Power consumption | = 4 W |
| Language | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Technology | IP |
