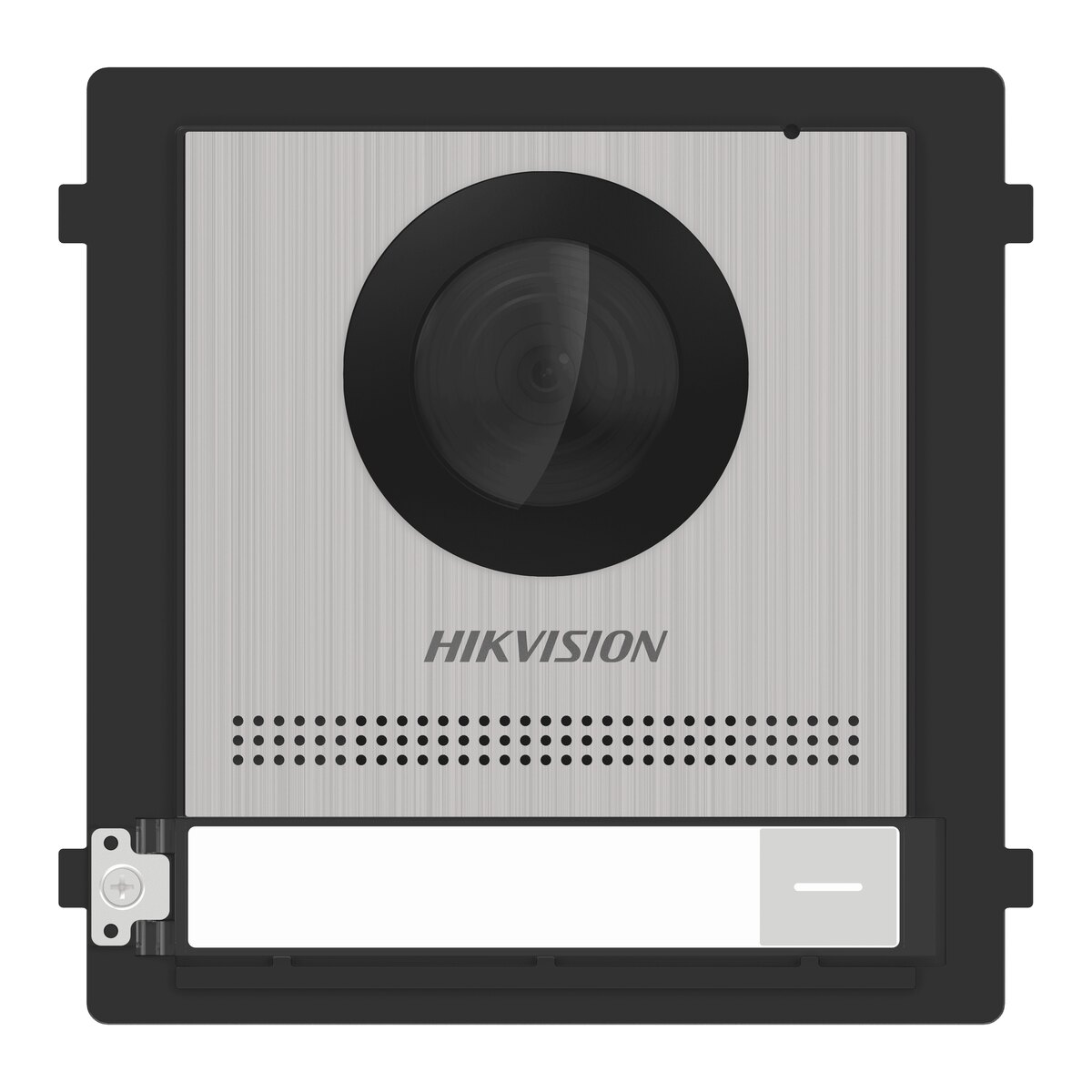

Hikvision 2MP 2-Wire IP Stainless Steel Modular Video Door Station DS-KD8003Y-IME2/S
If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products
- 2MP (1080p) camera
- Infrared night vision
- Wi-Fi
- IP65 weatherproof
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Description
A video door station for Hikvision's 2-wire IP intercom range. Visitors press the call button and you answer from an indoor station or from the Hik-Connect app on your phone.
Key features
- 2MP (1080p) camera
- Infrared night vision
- Wi-Fi
- IP65 weatherproof
- Working temperature: -40° C to 60° C (-22° F to 140° F)
- Works with the Hik-Connect app
Not sure which parts your system needs? Send us a message with the door and room layout and we will put the list together.
Specifications
| System parameters | |
|---|---|
| Operating system | Embedded Linux operation system |
| ROM | 32 MB |
| RAM | 256 MB |
| CPU | Embedded Processor |
| Display parameters | |
| Screen size | NA |
| Operation method | NA |
| Type | NA |
| Resolution | NA |
| Video parameters | |
| Supplement light | Low illumination, IR supplement lights |
| Video standard | H.264 |
| Lens | 1 |
| FOV | Horizontal: 146°, Vertical: 82° |
| WDR | Support |
| Resolution | 2 MP |
| Audio parameters | |
| Audio compression standard | G.711 U, G.711 A |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| User capacity | 2000 |
| Face capacity | NA |
| Linked indoor station capacity | 500 |
| Sub door station capacity | 16 |
| Network parameters | |
| Communication protocol | NA |
| Wired network | NA |
| Wi-Fi | NA |
| Bluetooth | NA |
| 3G/4G | NA |
| Device interfaces | |
| Alarm input | 4 (2 exit butttons and 2 door contacts by default) |
| Network interface | NA |
| TAMPER | 1 |
| Exit button | 2 (2 for lock control) |
| Door contact input | 2 |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| Wiegand | NA |
| TF card | NA |
| Alarm output | NA |
| Lock control | 2 (2 relay, max to 30 VDC, 2 A) |
| USB | NA |
| Power interface | 12VDC power output（12 V, 500 mA Max.） |
| Two-wire IP interface | 1 |
| General | |
| Button | 1 |
| Installation | Surface mounting & flush mounting |
| Weight | 422.8 g |
| Protective level | IP65 |
| Working temperature | -40° C to 60° C (-22° F to 140° F) |
| Working humidity | 10% to 90% |
| Dimensions | 100 mm |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Resolution | 2 MegaPixel |
| Technology | IP |
